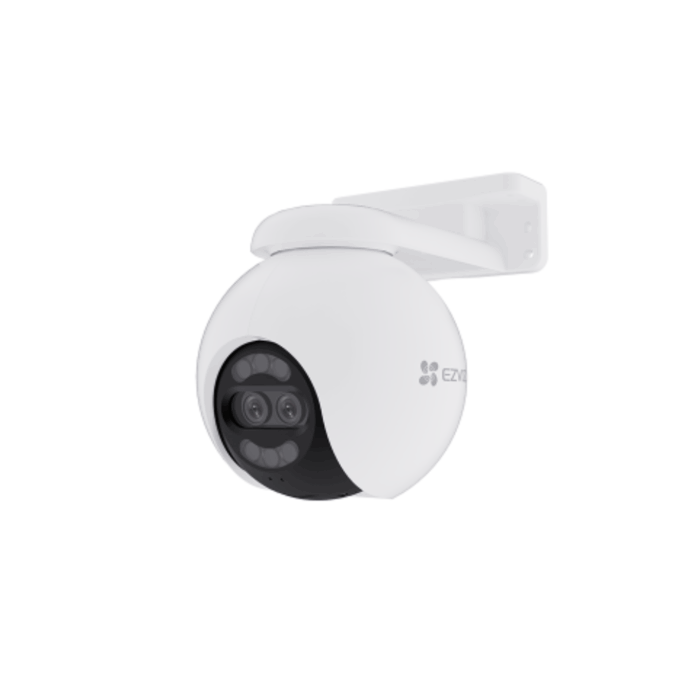

EZVIZ CAMERA CS-H80X-8MP-2MP-1K3

EZVIZ CAMERA CS-H80X-8MP-2MP-1K3 Overview

Estimated Reading Time: 3 minutes

• Advanced outdoor security camera with 4K resolution
• Flexible viewing angles with Pan & Tilt capabilities
• Minimum illumination for clear night vision
• Smart features for customized alerts and tracking
• IP65 rating for dust and water resistance

EZVIZ CAMERA CS-H80X-8MP-2MP-1K3 is an advanced outdoor security camera by Ezviz featuring H80x Dual 4K and Pan & Tilt Wi-Fi capabilities. This camera offers superior resolution and flexible viewing angles, making it ideal for outdoor surveillance. You have the right to request a return of the product within 3 days of receiving the order if there is a defect or manufacturing issue with the product – Terms and Conditions apply.

Delivery within 1 to 2 days.

Description

Model: CS-H80x-R100-8G82WKFL

The camera features a 1/2.7” + 1/2.9” Progressive Scan CMOS image sensor. The shutter speed is self-adaptive, which optimizes exposure automatically.

Lens specifications include a 4mm lens at F1.0 aperture for 1080p with viewing angles of 46° vertical, 87° horizontal, and 103° diagonal. For 4K resolution, the lens is 4mm at F1.6 aperture with the same viewing angles.

PT (Pan/Tilt) angle: Pan 340°, Tilt 70° allows extensive coverage.

Minimum illumination is 0.01 Lux with AGC ON, and 0 Lux with IR, ensuring clear images even in minimal light.

It features an M12 lens mount and an IR-cut filter for automatic day/night switch.

Image processing features include 3D DNR noise reduction, digital WDR, and BLC support. Night vision capability extends to 30m / 98ft.

Maximum video resolution: 3840 × 2160 (4K), with self-adaptive frame rate during network transmission. Video compression supports H.265 / H.264 (Main Profile).

Adaptive video bit rate and audio bit rate are supported. Network connectivity includes Wi-Fi (IEEE802.11b/g/n) on 2.4 GHz with 20 MHz bandwidth, and secure transmissions using multiple encryption standards (WEP, WPA, WPA2).

Wired network uses an RJ45 port for 10M/100M Ethernet.

Smart features consist of AI-powered human and vehicle shape detection, customized alert areas, two-way talk, and auto tracking.

General functions include anti-flicker, dual-stream, heartbeat, password protection, and watermark.

Storage options are local microSD card support up to 512 GB and EZVIZ CloudPlay cloud storage (subscription required).

Operating conditions range from -30ºC to 50ºC with 95% humidity or less (non-condensing). The camera has an IP65 rating for water and dust resistance.

Power supply is DC 12V/1A with maximum power consumption of 12W.

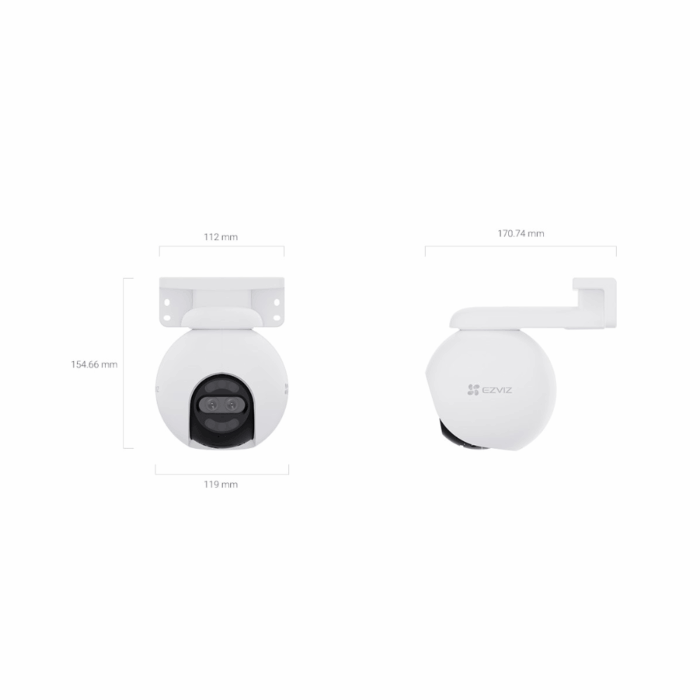

Dimensions: 170 × 112 × 154 mm, weight: 630 g.

Packaging includes the H80x Dual 4K Camera, drill template, waterproof kit, screw kit, power adapter, regulatory info, and quick start guide.
