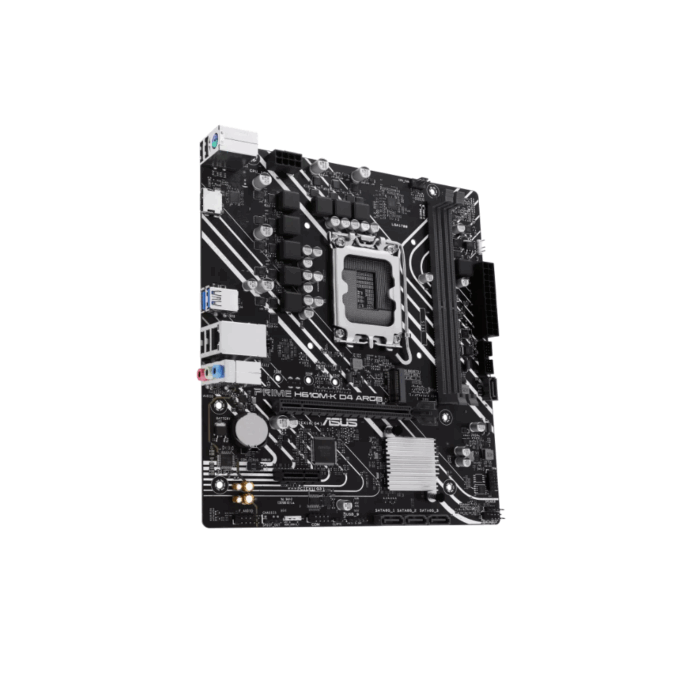

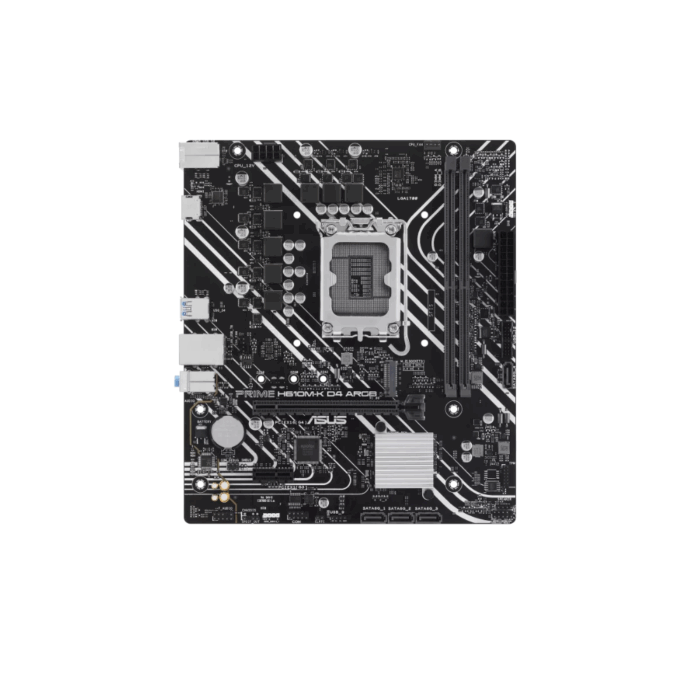

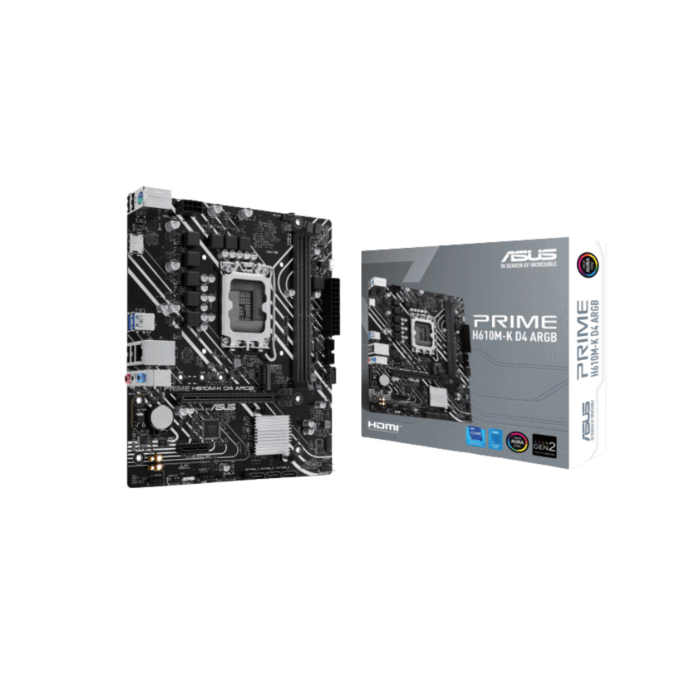

ASUS PRIME H610M-K DDR4 ARGB1700LGA

Asus PRIME H610M-K D4 ARGB

Estimated reading time: 5 minutes

• Supports up to 64GB of DDR4 memory
• 1 x PCIe 4.0 x16 expansion slot
• Realtek 1Gb Ethernet connectivity
• Multiple USB 5Gbps and USB 2.0 ports
• Micro-ATX form factor with thermal solutions



Model
PRIME H610M-K D4 ARGB

CPU
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset
Intel® H610 Chipset

Memory
2 x DIMM slots, max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit www.asus.com.

Graphics
1 x HDMI™ port**
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots
**Intel® Core™ Processors (14th & 13th & 12th Gen)**
1 x PCIe 4.0 x16 slot (supports x16 mode)
**Intel® H610 Chipset**
1 x PCIe 3.0 x1 slot
– To ensure compatibility of the device installed, please refer to www.asus.com/support/ for the list of supported peripherals.

Storage
**Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports**
**Intel® H610 Chipset**
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
4 x SATA 6Gb/s ports

Ethernet
1 x Realtek 1Gb Ethernet

USB
**Rear USB (Total 6 ports)**
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
**Front USB (Total 3 ports)**
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 1 additional USB 2.0 port

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
**Audio Features**
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

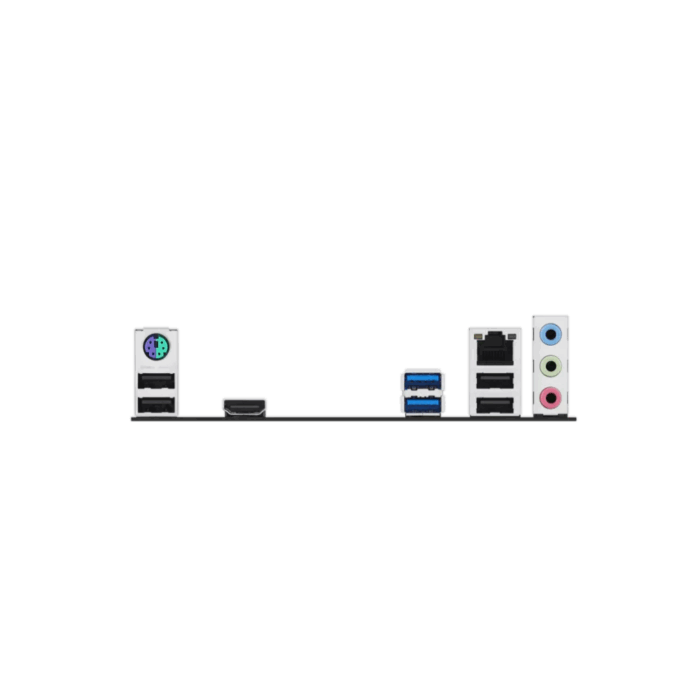

Back Panel I/O Ports
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 keyboard/mouse combo port

Internal I/O Connectors
**Fan and Cooling Related**
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
**Power Related**
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
**Storage Related**
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
**USB**
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 1 additional USB 2.0 port
**Miscellaneous**
2 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header

Special Features
**ASUS 5X PROTECTION III**
– DIGI+ VRM
– LANGuard
– Overvoltage protection
– SafeSlot Core
– Stainless-steel back I/O
**ASUS Q-Design**
– Q-DIMM
– Q-LED Core
– Q-Slot
**ASUS Thermal Solution**
– Aluminum heatsink design
**Aura Sync**
– Addressable Gen 2 headers

Software Features
**ASUS Exclusive Software**
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert
– Two-Way AI Noise Cancelation
AI Suite 3
– EPU
– DIGI+ VRM
– PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
**UEFI BIOS**
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode

BIOS
128 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
**Cables**
2 x SATA 6Gb/s cables
**Miscellaneous**
1 x I/O shield
1 x M.2 anchor
**Documentation**
1 x Quick start guide

Operating System
Windows® 11, Windows® 10 64-bit

Form Factor
micro-ATX Form Factor
9.2 inch x 8.0 inch (23.4 cm x 20.3 cm)
Micro-ATX form factor is an essential consideration for compact builds, ensuring you have a reliable and efficient motherboard layout.



Overall, the Asus PRIME H610M-K D4 ARGB provides great features for a versatile computing experience.



Perfectly suited for DDR4 memory support, this motherboard offers excellent upgrade options for future expansions.
