| Model |
DHY8000SELR |
| Rated/Prime kVA* |
6.3 |
| Rated/Prime kW |
5 |
| Max/Standby kVA* |
7.25 |
| Max/Standby kW |
5.8 |
| Phase |
Single |
| Voltage |
115 / 230 |
| Connection Method(s) |
Sockets – 1 x 115V/16A 1 x 115V/32A 1 x 230V/32A |
| Rated Speed (RPM) |
3000 |
| Frequency (Hz) |
50 |
| Max/Continuous Current (Amps) |
115v 50 / 43.5 – 230v 25 / 21 |
| Power Factor (Cosφ) |
1 |
| Fuel/Power Source |
Diesel |
| Fuel Tank (Litres) |
25 |
| Runtime (Hours) @ 100% Load |
14.62 |
| Noise Level @ 1m 75% load (dB) |
96 |
| Noise Level @ 7m 75% load (dB) |
70 |
| Hyundai Diesel Engine Model |
D450E |
| Max Engine Power (hp) |
12 |
| Engine Displacement (CC) |
456 |
| No. of Cylinders |
1 |
| Recommended Oil Type |
15w40 / 10w40 |
| Oil Capacity (Litres) |
1.65 |
| Oil Filter Part No. |
D450-B9+D450-B8 |
| Aspiration |
Natural |
| Fuel Regulation/Governor System |
Mechanical |
| Fuel Consumption (100% Load) [Litres] |
1.71 |
| Fuel Filter Part No. |
D450-R05 |
| Cooling |
Forced Air-Cooled |
| Alternator Model |
D450/500-S01-4 |
| Breakers |
1P 30A 1P 21A 1P 13A |
| Alternator Type |
Brushed |
| Voltage Regulation |
AVR |
| Air Filter Part No. |
D450-I4 |
| Net Weight (kg) |
158 |
| Gross Weight (kg) |
167 |
| Wheel Kit? |
Yes |
| Product Dimensions L x W x H (mm) |
960 x 560 x 890 |
| Packaged Dimensions L x W x H (mm) |
960 x 560 x 910 |
| Battery (Ah) |
12v 36a/h |
| ATS / MTS Compatible |
Yes |

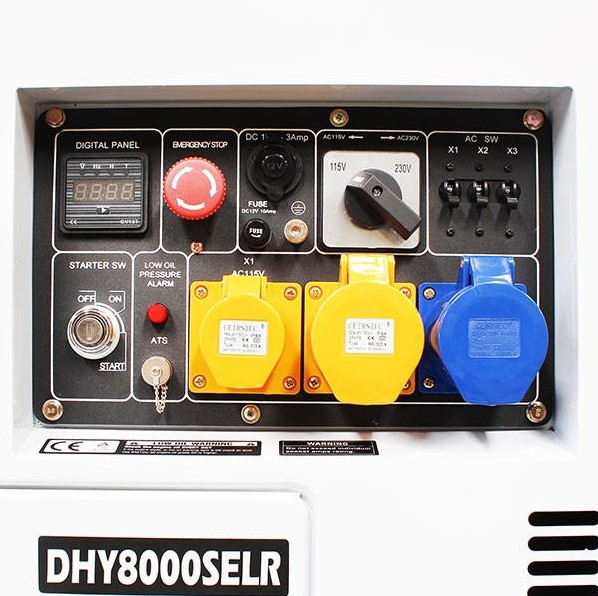

| Control Panel |
LED3 DISPLAY |
| Warranty |
1 Year / 1000 Hours* (Terms apply) |
| Model EAN |
610370632338 |
| Product Type |
Diesel Generator |
| Assembly Required? |
Yes – some assembly may be required |
